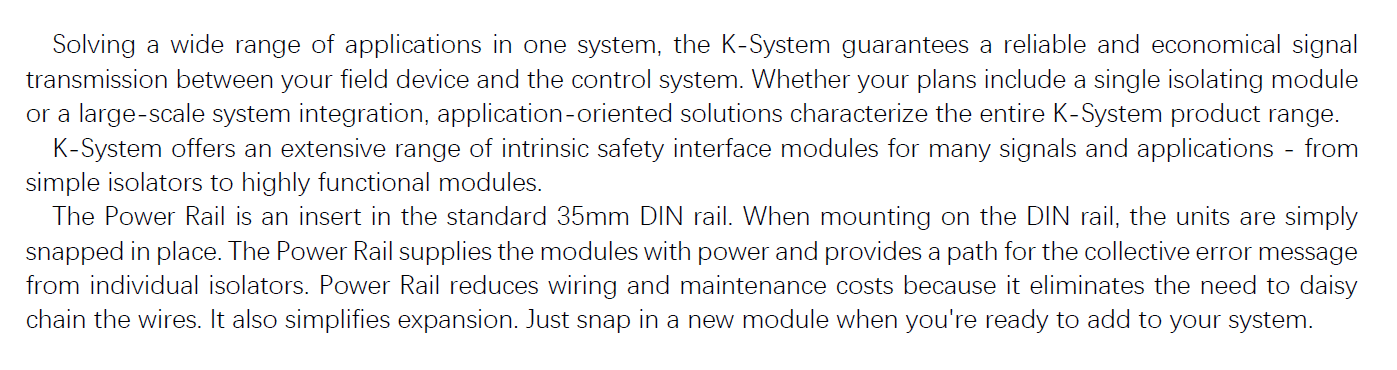

The K-system comprises signal conditioners for signal transfer between control system and safe area as well as isolated barriers for communication with field devices in hazardous areas. They are preferred for these kinds of mixed applications. Wide range of isolated barriers and signal conditioners for mixed applications. Modules for universal power supply. Reduced wiring by Power Rail. Removable terminals. Many modules with marine approvals and SIL assessment.

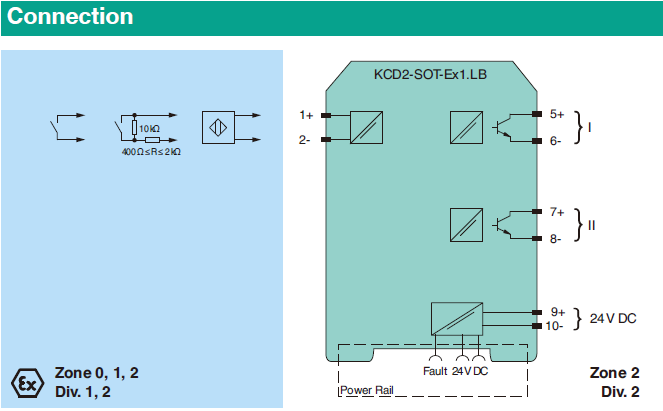

1-channel isolated barrier
24 V DC supply (Power Rail)
Dry contact or NAMUR input
2 passive transistor outputs
Usable as signal splitter (1 input and 2 outputs)
Reversible mode of operation
Line fault detection (LFD)
Housing width 12.5 mm
SIL 2 (SC 3) acc. to IEC/EN 61508
Housing width: 12.5 mm
Number of channels: 1-channel
Safety Integrity Level (SIL): SIL 2
Rated voltage: 19~30 V DC
