Product function

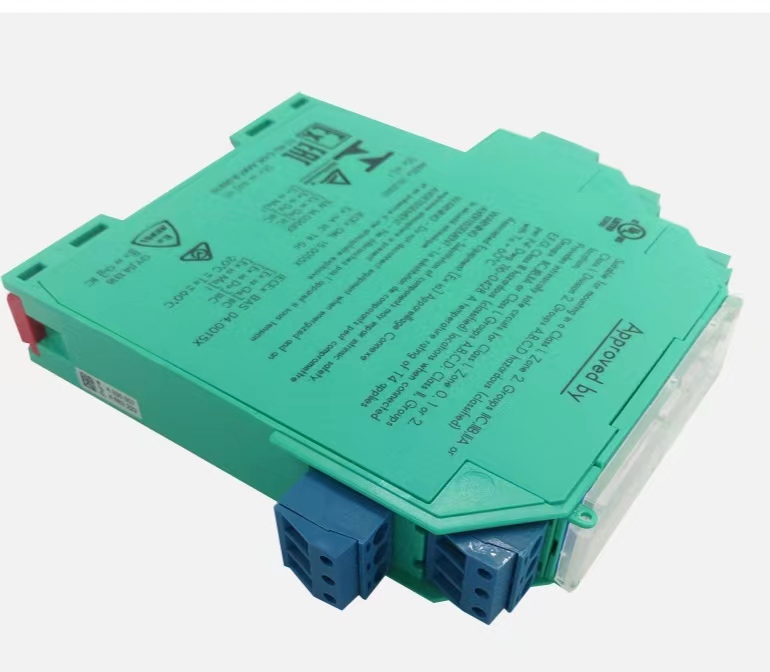

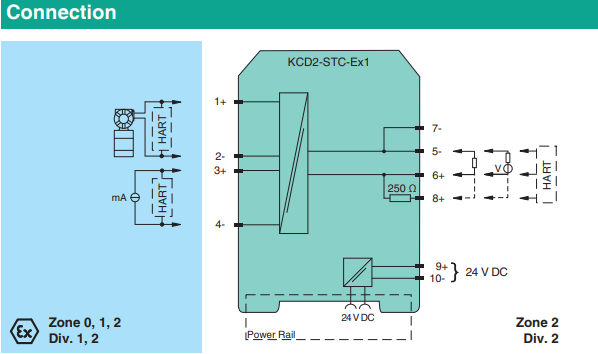

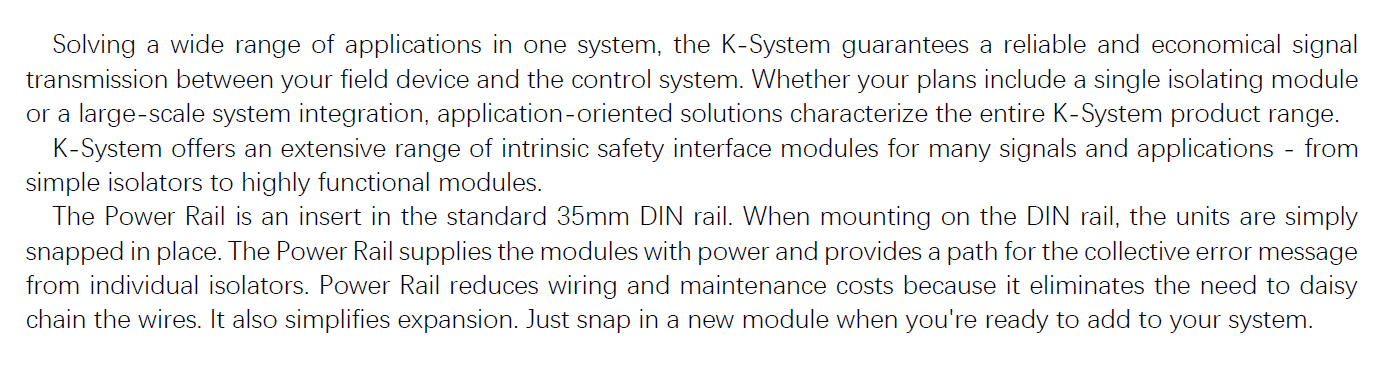

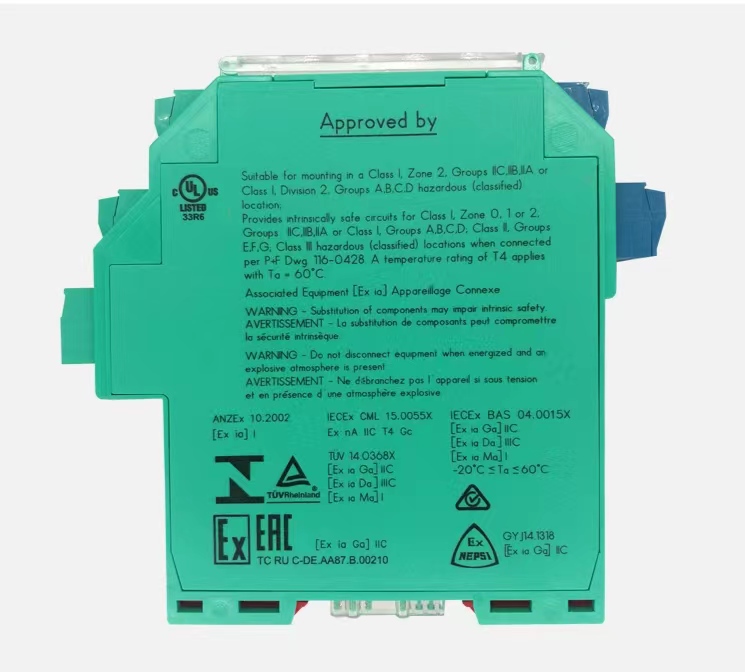

This isolated barrier is used for intrinsic safety applications. The device supplies 2-wire SMART transmitters in a hazardous area, and can also be used with 2-wire SMART current sources. It transfers the analog input signal to the safe area as an isolated current value. Digital signals may be superimposed on the input signal in the hazardous or safe area and are transferred bi-directionally. Selectable output of current source, sink mode, or voltage output is available via DIP switches. If the HART communication resistance in the loop is too low, the internal resistance of 250 Ω between terminals 6 and 8 can be used. Test sockets for the connection of HART communicators are integrated into the terminals of the device.

Product features

1-channel isolated barrier

24 V DC supply (Power Rail)

Input 2-wire and 3-wire SMART transmitters and 2-wire SMART current sources

Output 4 mA ~ 20 mA current sink/current source

Terminals with test points

Up to SIL 2 acc. to IEC/EN 61508

Housing width: 20 mm

Number of channels: 1-channel

HART communication, Test sockets

Safety Integrity Level (SIL): SIL 2

Rated voltage: 18 ~30 V DC

Application area

Industrial automation



KCD2-STC-Ex1 Manual.pdf
